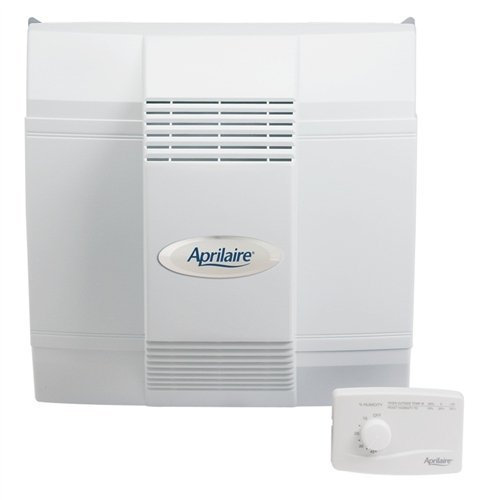

Aprilaire 700M Whole-House Humidifier with Manual Control-Best Seller
in USA
List Price :
$386.65Price : $199.95Code : B00DJVISBK* Special discount only for limited time
Product Feature
- Humidifies a tightly-constructed home of up to 4,200 square feet
- Evaporation capacity of 0.75 gallons/hour, which is among the highest capacity humidifiers sold
- 5 Year Manufacturer Warranty
- Fan Powered
Product Description
The Aprilaire Model 700M Whole-House Humidifier features a built-in bypass damper. The bypass damper is conveniently labeled for both summer and winter settings, allowing you to set it for the entire season with no guesswork involved. The Aprilaire Model 700 Whole-House Humidifier is simply the best performing bypass humidifier on the market.
Product Detail
- Amazon Sales Rank: #5563 in Home Improvement
- Brand: Aprilaire
- Model: 700M
- Number of items: 1
- Dimensions: 12.00" h x16.00" w x16.00" l,
Maybe you should visit the following website to get a better price and specification details
Related Seller :Aprilaire 700M Whole-House Power Humidifier with Manual ControlGuaranteed Low Price, FREE Ground Shipping. The Aprilaire 700M Power Humidifier with manual control is ideal for mid-large size homes.
Aprilaire 700M Humidifier, 120V Whole House Humidifier w Product Information: About the Aprilaire 700M 120V Power Fan Humidifier with Manual Control (6 gallons/hr) Never has your air been fresher, cleaner and more
Aprilaire 600M Whole-House Humidifier with Manual Control The Aprilaire Model 600M Whole-House Humidifier features a built-in bypass damper, which means fewer parts to install. The bypass damper is conveniently labeled for
Aprilaire Model 400M Whole-house Bypass Humidifier with Manual The Aprilaire 400M Humidifier features a unique water-conserving design that does not require a drain line. The Aprilaire 400M bypass humidifier can humidify a
Aprilaire Humidifiers, Honeywell Humidifiers, Lennox Web’s # 1 Source of Aprilaire Humidifiers, Lennox Humidifiers, Honeywell Humidifiers and GeneraAire Humidifiers. DiscountHumidifiers.com is one of the most
Product Reviews
4 of 4 people found the following review helpful.
these should be manditory on all furnace installs. love this unit!
By leoisright
OK, this is exact same as the automatic except it has the manual humidistat.
I was a bit nervous about installing this because of how little room to install this. There is literally 1/2" between the wall and this now. But works amazing!
Straight forward installation. Installed on the supply plenum. One thing, don't use the saddlevalve they give you. Go buy a sharkbite valve. Super easy to install with no soldering required.
List of supplies used.
1. Metal tape (duct tape for the plenum but made of metal)
2. Tin snipe. (To cut the plenum)
3. 3/4" sheet metal drill bit (titanium or better)
4. Sharkbite valve (connect to water line. Just push pipe in both sides((1/2" osd))
5. Sharkbite 1/2" to 1/4" on/off valve
6. 1/4" osd foggy plastic hose (connects to the water inlet on humidifier)
7. 1/2" clear tube (for the drainage tube on humidifier to drai )
8. 18x2 thermostat wire, wire nuts, and plastic tube to hide wires.
9. 1/2" copper tube. Maybe need only 3"-5" (extends the sharkbite valve)
10. 20' outdoor extension drop cord (only if you don't have plug near supply plenum)
11. Level
12. Electric drill
13. Yellow handle tin snips (yellow means cuts strait lines or curved)
14. #8 self tapping sheet metal screws. 1", and only 4-6 is needed.
15. Pipe cutter
16. 13mm open socket wrench
Shut off breaker to furnace. Do not install before you do this.
So, the toughest part on the install was cutting the plenum. I didn't have enough room for the drill to drill hole, but was creative and got one made. The instructions are the template for the humidifier base. Used a level and made sure it was on level. I chose to use the supply plenum to install so I wouldn't need to use hot water. Save a few gallons of water daily. After the square hole was cut, I used a hammer and pliers to make sure the edges were even. Then mounted the base, and screwed it in. Next, used the metal duct tape (do not use regular tape, must be the metal kind) to tape around the base. Take your time and make it look good.
Next, wiring. The bottom of the base has two brown wires. Using the 18x2 thermostat wires, connect one brown wire to the common circuit on the furnace circuit. Should be labeled C. Next, connect the other wire to the W (24v aux). Connect that wire to one terminal on the humidistat. First mount the humidistat where you want it. After the the power wire is connected to the humidistat, add another wire to the other post in the humidistat. Doesn't matter which one you use. Take that wire and connect it to the other brown wire on the base of the humidifier.
Next is the water. If you have a water softener, you will be using the copper line going from there to the water heater. Shut off the main valve and grab a small bucket (water will drain from the line) and place under where you want to install the sharkbite adaptor. Use a black marker and mark the pipe. Then measure 1" both left and right. This is where you want to make your cut. Cut the pipe in both spots so you have a 2" space between ends. Slide the sharkbite adaptor in between and press the adaptor hard in each side. It will lock in to place. Cut a 3"-5" piece of spare copper pipe and push in the middle of the adaptor. Then attach the 1/2" to 1/4" sharkbite valve. Push it hard and it snaps in. Take off the 1/4" but and the copper coupling inside. Slide the foggy 1/4" tube through the but and then the coupling and in to the valve. Using a #13 wrench, tighten the but down as much as you can without breaking it. Connect the other side of the tube to the bottom of the humidifier base. Using the same method of through the but and coupling, then tighten down a lot. Otherwise this will leak. Next connect the 1/2" drain line. Run it from the bottom of the humidifier base to your drain near the water heater or softener. If there isn't one, you will need to buy a pump and attach it to there and pump it out of the house or to a drain.
Last, use the extension cord, connect from outlet to plug on the humidifier. Use the black tube to conseal the wires if you want. Turn on the water to make sure no leaks. If there are some at the valve and base of humidifier, tighten those nuts down. It will stop leaking. May seem like you will break the sylanoid on the base, but it won't.
Turn on the furnace breaker, set the heat to high to you can monitor the humidifier. It should be working fine.
Alternative install. Use the transformer and connect to the HUM spot on the circuit board and the other to Neutral, the the humidistat to one of the back side and other goes direct to the brown wire on the base of humidifier.
I am not a HVAC tech. So if you have questions I can't really help. But installing yourself will take 3-5 hours depending on trips to the hardware store. It will also save you between $350-$500. The total cost of the parts were right around $100. But because I didn't have the drill bit, the pipe cutter, yellow tin snips, metal tape, extension cord, or tubing. If you have those, the sharkbite adaptors will be around $25.
So far we have felt an immediate impact on the air quality. Well worth the price.
1 of 1 people found the following review helpful.
House feels good again
By mikei
My previous unit a 760 failed after 10 plus years and I noticed how dry the house got.
This unit is the same size but there are a few differences. The 24V transformer is now external to the unit and the controller (humidistat) is smaller than the old model. Minor changes that are not hard to work around.
Now my house is comfortable again.
0 of 0 people found the following review helpful.
Works well. Good value.
By DAVID Humple
Relatively easy installation as I was replacing a Honeywell humidifier that crapped out in less than a year. I should have bought the Aprilaire in the first place. I've had it in place for a week now and humidity level is good. I have a 4000 square foot home and the unit is just sufficient for this size house. I originally had an Aprilaire for more than 10 years. The fan motor died and I replaced the unit with a Honeywell. Big mistake. Get an Aprilaire instead.
